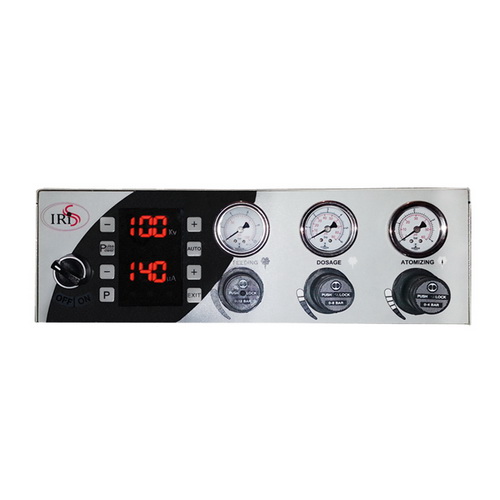

Digital powder coating control unit M120
Proper and complete coating of the corner points
3 pre programmed mod
Earth and Gun connectivity detector
Automatic and manual powder spraying gun connectable
High quality body and parts
Fully Repairable and Replaceable parts
One year warranty
Specification :
|
Dimension |
|
| Width | 270 mm |
| Height | 110 mm |
| Lenght | 350 mm |
| Weight | 10 Kg |
|
Electic: |
|
| Input | 220 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 65 W (Max) |
| solenoid | 24 V DC |
|
Pneumatic |
|
| Maximum Input Air pressure | 6~8 Bar |
| Average Input Air pressure | 0~6 Bar |
| Minimum Input Air pressure | 0~2.5 Bar |
| Maximum Input Air oil | 0.1 ppm |
| Maximum Input Air Consume | 13,2 Nm^3/h/24,5Nm^3/h |
|
Voltage indicator |
|
| Voltage | 0~100 KV |
| Electrostatic Current | 0~140 μA |
|
Workshop Conditions |
|
| Working temperature | -10 ~ +50°c |
Rangin Pishesh Poodr Company
Rangin Pushesh poodr company is a manufacture and supplier of powder coating equipment and related accessories with more than 10 years experience in field of powder coating systems.
