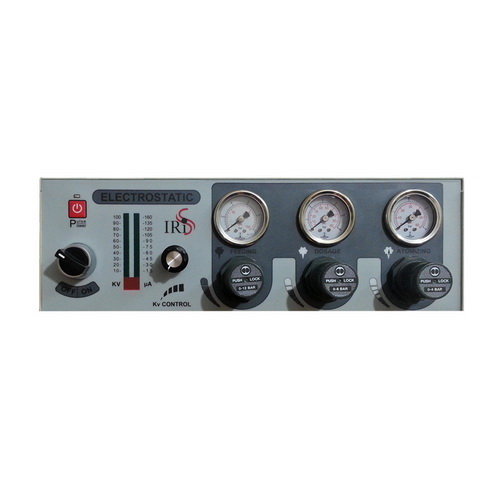

analog powder coating control unit M100
Automatic and manual powder spraying gun connectable
Proper and complete coating of the corner points
High quality body and parts
Fully Repairable and Replaceable parts
One year warranty
Specifications :
|
Dimension |
|
| Width | 270 mm |
| Height | 110 mm |
| Lenght | 350 mm |
| Weight | 10 Kg |
|
Power: |
|
| Input | 220 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 65 W (Max) |
| solenoid | 24 V DC |
|
Pneumatic |
|
| Maximum Input Air pressure | 8 Bar |
| Average Input Air pressure | 6 Bar |
| Minimum Input Air pressure | 4 Bar |
| Maximum input Air Moisture | 1,4 g/Nm^3 |
| Maximum Input Air oil | 0.1 ppm |
| Maximum Input Air Consume | 13,2 Nm^3/h/24,5Nm^3/h |
|
Voltage indicator |
|
| Voltage | 0~100 KV |
| Electrostatic Current | 0~160 μA |
|
Workshop Conditions |
|
| Working temperature | -10 ~ +50° C |
Rangin Pishesh Poodr Company
Rangin Pushesh poodr company is a manufacture and supplier of powder coating equipment and related accessories with more than 10 years experience in field of powder coating systems.
